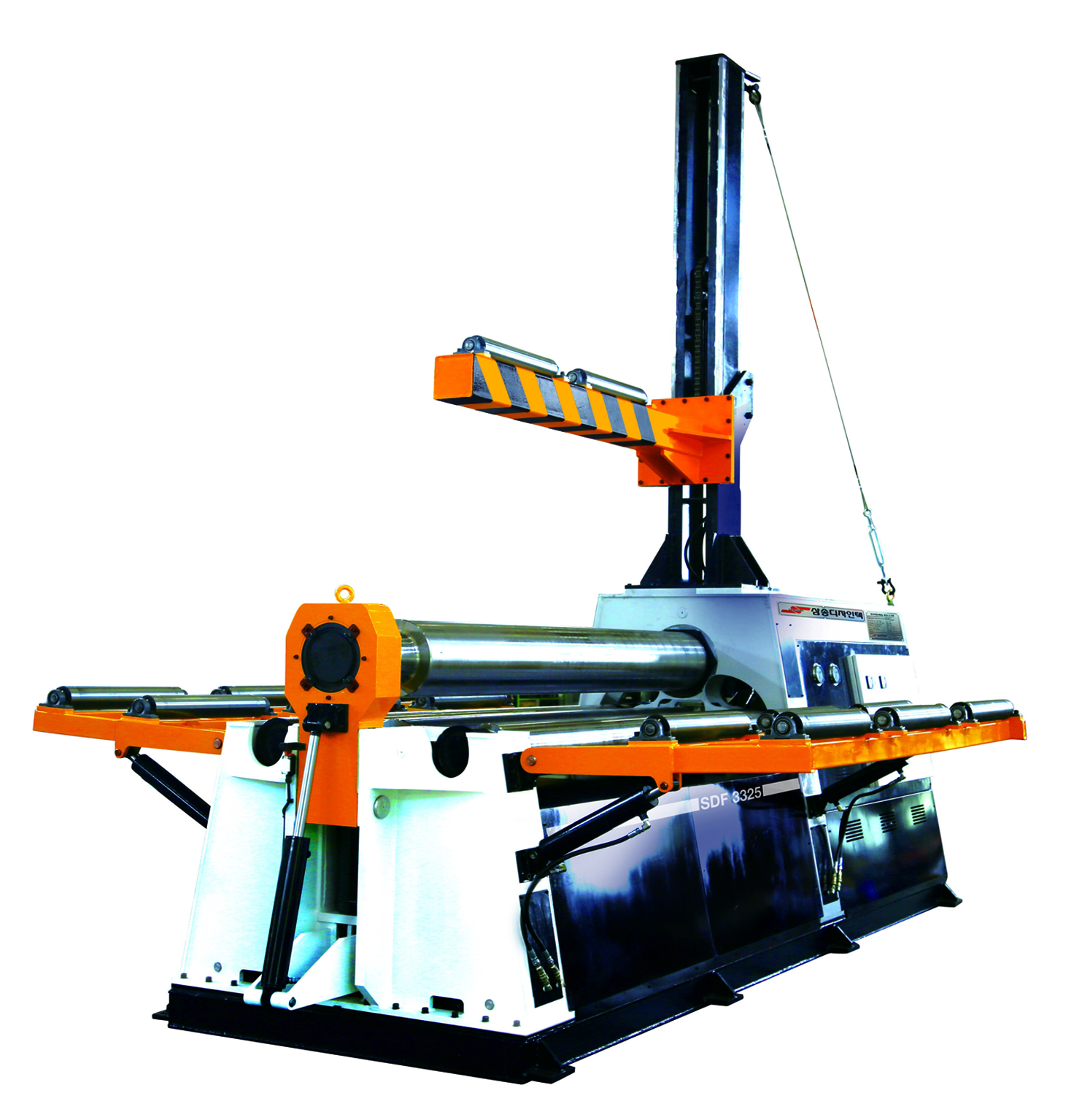

Product Description | ITEM | DEscRIPTION | REMARKS | | 1) MODEL | SDF 3325 | 4-ROLL TYPE | | 2) DESIGN OF ROLLERS | | | | (1) NUMBER OF ROLLERS | 4 | | | (2) SURFACE LENGTH OF ROLLERS | 2500mm | | | (3) DIA. OF ROLLERS | | | | TOP ROLLER | ø330mm | 1EA | | BOTTOM ROLLER | ø300mm | 1EA | | SIDE ROLLER | ø230mm | 2EA | | (4) ROLLERS MATERIAL | ALLOY STEEL | SURFACE HARDENING OF ROLLS | | 3) CAPACITY OF BENDER | | | | (1) BENDING (ONLY ROUNDING) | MAX. 20T(AT FULL WIDTH) | | | (2) PREBENDING | MAX. 16T(AT FULL WIDTH) | | | (3) FLAT END | 2~2.5 X THICKNESS | | | (4) SAMLLEST BENDING DIA. | 500mm | | | 4) SPEED | | | | (1) OPERATING | 0.5~5 M/MIN | | | (2) PRESSING | 3~5 MM/SEC | | | 5) DRIVE | | | | (1) DRIVEN ROLLERS | TOP ROLLER 1EA,SIDE ROLLER 2EA | | | (2) DROVE OF ROLLERS | HYDROMOTOR VIA PLANETARY GEAR TRANSMISSION | LUBRICATION-OIL BATH | | (3) ELECTRIC POWER | 22.5KW | | | (4) HYDRAULIC OIL VOLUME | 520 LITER | | | 6) CONTROL SYSTEM | ELECTRIC OPERATION PANEL | OPTION : NC CONTROL | | 7) MAIN BODY(WITHOUT SUPPORT OPTION) | | | | (1) MACHINE SIZE (L X M X H) | 5400 X1650 X 1950 | | | (2) MACHINE WEIGHT(APPROX.) | 12TON | | | 8) POWER VOLTAGE | 380V X 60Hz |
|
